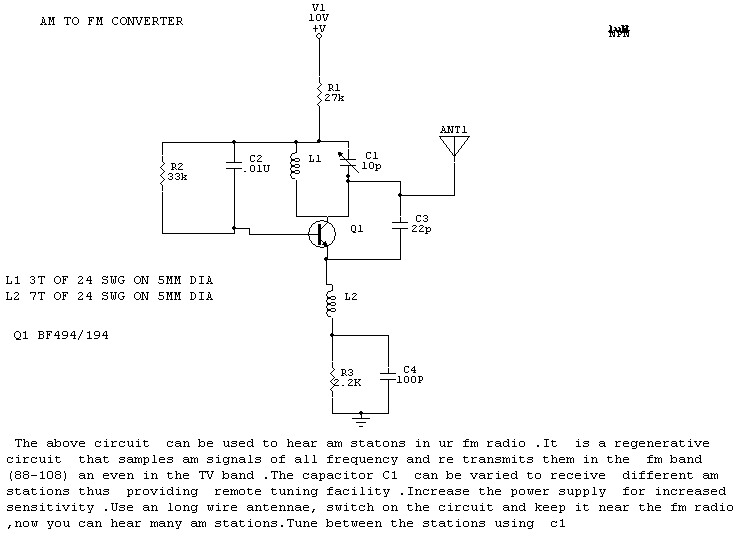

How to build AM To FM converter

this circuit diagram belongs to Radio category.




Download this schematic in doc

Author: aswinkumar
Email: aswinefy2003@yahoo.co.in
Website: http://www.electronics-lab.com
